<pre>
  BIP: 300
  Layer: Consensus (soft fork)
  Title: Hashrate Escrows (Consensus layer)
  Author: Paul Sztorc <truthcoin@gmail.com>
          CryptAxe <cryptaxe@gmail.com>
  Comments-Summary: No comments yet.
  Comments-URI: https://github.com/bitcoin/bips/wiki/Comments:BIP-0300
  Status: Draft
  Type: Standards Track
  Created: 2017-08-14
  License: BSD-2-Clause
  Post-History: https://lists.linuxfoundation.org/pipermail/bitcoin-dev/2017-May/014364.html
</pre>

==Abstract==

In Bip300, txns are not signed via cryptographic key. Instead, they are "signed" by hashpower, over time. Like a big multisig, 13150-of-26300, where each block is a new "signature".

Bip300 emphasizes slow, transparent, auditable transactions which are easy for honest users to get right and very hard for dishonest users to abuse. The chief design goal for Bip300 is ''partitioning'' -- users may safely ignore Bip300 txns if they want to (or Bip300 entirely).

See [http://www.drivechain.info/ this site] for more information.


==Motivation==


As Reid Hoffman [https://blockstream.com/2015/01/13/en-reid-hoffman-on-the-future-of-the-bitcoin-ecosystem/ wrote in 2014]: "Sidechains allow developers to add features and functionality to the Bitcoin universe without actually modifying the Bitcoin Core code...Consequently, innovation can occur faster, in more flexible and distributed ways, without losing the synergies of a common platform with a single currency."

Today, coins such as Namecoin, Monero, ZCash, and Sia, offer features that Bitcoiners cannot access -- not without selling their BTC to invest in a rival monetary unit. According to [https://coinmarketcap.com/charts/#dominance-percentage coinmarketcap.com], there is now more value *outside* the BTC protocol than within it. According to [https://cryptofees.info/ cryptofees.info], 15x more txn fees are paid outside the BTC protocol, than within it.

Software improvements to Bitcoin rely on developer consensus -- BTC will pass on a good idea if it is even slightly controversial. Development is slow: we are now averaging one major feature every 5 years.

Sidechains allow for competitive "benevolent dictators" to create a new sidechain at any time. These dictators are accountable only to their users, and (crucially) they are protected from rival dictators. Users can move their BTC among these different pieces of software, as *they* see fit.

BTC can copy every useful technology, as soon as it is invented; scamcoins lose their justification and become obsolete; and the community can be pro-creativity, knowing that Layer1 is protected from harmful changes.

==Specification==

===Overview===

Bip300 allows for six new blockchain messages (these have consensus significance):

* M1. "Propose New Sidechain"
* M2. "ACK Proposal"
* M3. "Propose Bundle"
* M4. "ACK Bundle"
* M5. Deposit  -- a transfer of BTC from-main-to-side
* M6. Withdrawal -- a transfer of BTC from-side-to-main

Nodes organize those messages into two caches:

* D1. "The Sidechain List", which tracks the 256 Hashrate Escrows (Escrows are slots that a sidechain can live in).
* D2. "The Withdrawal List", which tracks the withdrawal-Bundles (coins leaving a Sidechain).

==== D1 (The Sidechain List) ====

D1 is a list of active sidechains. D1 is updated via M1 and M2.

{| class="wikitable"
|- style="font-weight:bold; text-align:center; vertical-align:middle;"
! Field No.
! Label
! Type
! Description / Purpose
|- style="vertical-align:middle;"
| 1
| Escrow Number
| uint8_t
| The escrow's ID number. Used to uniquely refer to each sidechain.
|-
| 2
| Version
| int32_t
| Version number.
|-
| 3
| String KeyID
| string
| Used to derive all sidechain deposit addresses.
|-
| 4<br />
| Sidechain Private Key
| string
| The private key of the sidechain deposit script.
|- style="vertical-align:middle;"
| 5<br />
| ScriptPubKey
| CScript
| Where the sidechain coins go. This always stays the same, even though the CTIP (UTXO) containing the coins is always changing.
|- style="vertical-align:middle;"
| 6
| Sidechain Name
| string
| A human-readable name of the sidechain.
|- style="vertical-align:middle;"
| 7
| Sidechain Description
| string
| A human-readable name description of the sidechain.
|- style="vertical-align:middle;"
| 8
| Hash1 - tarball hash
| uint256
| Intended as the sha256 hash of the tar.gz of the canonical sidechain software. (This is not enforced anywhere by Bip300, and is for human purposes only.)
|- style="vertical-align:middle;"
| 9
| Hash2 - git commit hash
| uint160
| Intended as the git commit hash of the canonical sidechain node software. (This is not enforced anywhere by Bip300, and is for human purposes only.)
|-
| 10
| Active
| bool
| Does this sidechain slot contain an active sidechain?<br />
|- style="vertical-align:middle;"
| 11
| "CTIP" -- Part 1 "TxID"
| uint256
| The CTIP, or "Critical (TxID, Index) Pair" is a variable for keeping  track of where the sidechain's money is (ie, which member of the UTXO set).
|- style="vertical-align:middle;"
| 12
| "CTIP" -- Part 2 "Index"
| int32_t
| Of the CTIP, the second element of the pair: the Index. See #11 above.
|}


==== D2 (The Withdrawal List) ====

D2 lists withdrawal-attempts. If these attempts succeed, they will pay coins "from" a Bip300-locked UTXO, to new UTXOs controlled by the withdrawing-user. Each attempt pays out many users, so we call these withdrawal-attempts "Bundles".

D2 is driven by M3, M4, M5, and M6. Those messages enforce the following principles:

# The Bundles have a canonical order (first come first serve).
# From one block to the next, every "Blocks Remaining" field decreases by 1.
# When "Blocks Remaining" reaches zero the Bundle is removed.
# From one block to the next, the value in "ACKs" may either increase or decrease, by a maximum of 1 (see M4).
# If a Bundle's "ACKs" reach 13150 or greater, it "succeeds" and its corresponding M6 message can be included in a block.
# If the M6 of a Bundle is paid out, it is also removed.
# If a Bundle cannot possibly succeed ( 13500 - "ACKs"  >  "Blocks Remaining" ), it is removed immediately.


{| class="wikitable"
! Field No.
! Label
! Type
! Description / Purpose
|-
| 1
| Sidechain Number
| uint8_t
| Links the withdrawal-request to a specific hashrate escrow.
|-
| 2
| Bundle Hash
| uint256
| A withdrawal attempt. Specifically, it is a "blinded transaction id" (ie, the double-Sha256 of a txn that has had two fields zeroed out, see M6) of a txn which could withdraw funds from a sidechain.
|-
| 3
| ACKs (Work Score)
| uint16_t
| The current ACK-counter, which is the total number of ACKs (the PoW that has been used to validate the Bundle).
|-
| 4
| Blocks Remaining (Age)
| uint16_t
| The number of blocks which this Bundle has remaining to accumulate ACKs
|}






=== The Six New Bip300 Messages ===

First, how are new sidechains created?

They are first proposed (with M1), and later acked (with M2). This process resembles Bip9 soft fork activation.

==== M1 and M2 (Adding a new sidechain) ====

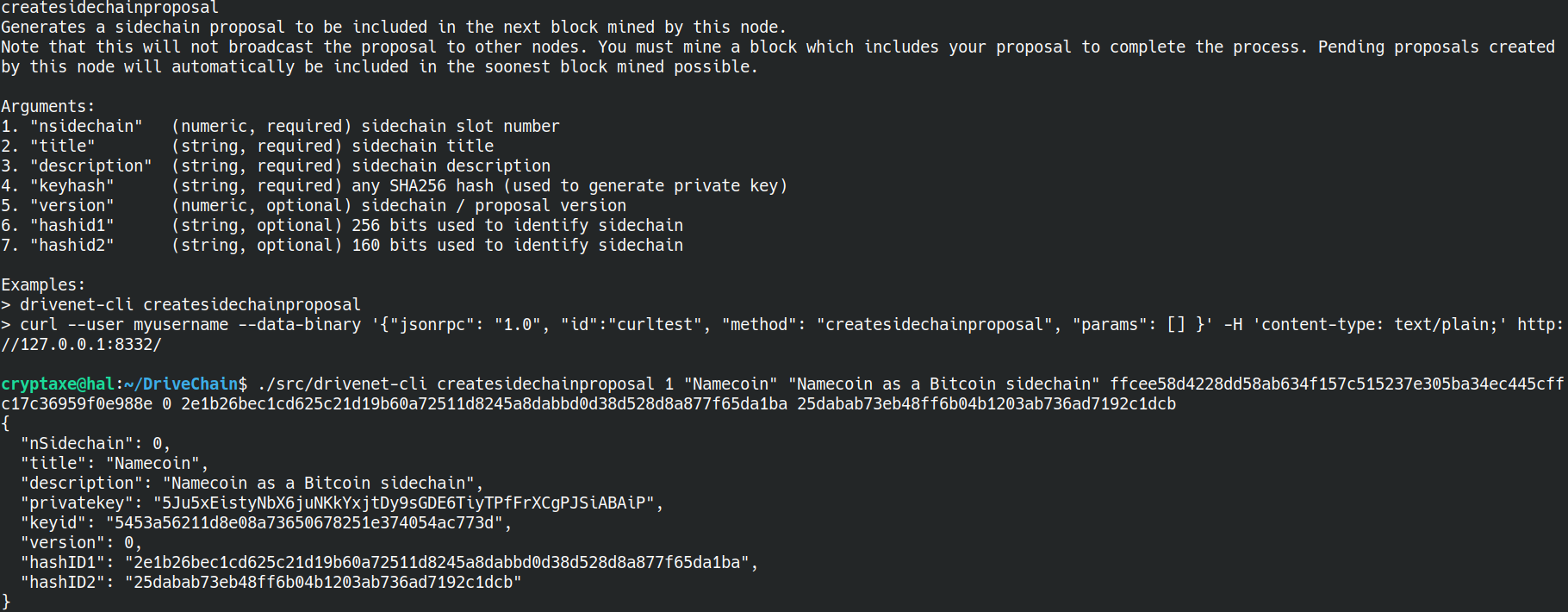

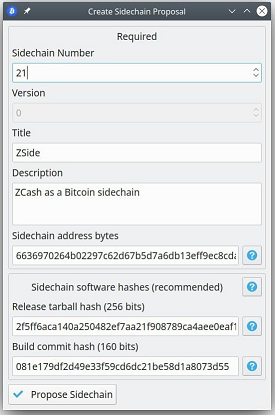

Examples:

<img src="bip-0300/m1-gui.jpg?raw=true" align="middle"></img>

<img src="bip-0300/m1-cli.png?raw=true" align="middle"></img>

M1 is a coinbase OP Return output containing the following:

    1-byte - OP_RETURN (0x6a)
    4-byte - Message header (0xD5E0C4AF)
    N-byte - The serialization of the sidechain.
      1-byte nSidechain
      4-byte nVersion
      x-byte strKeyID
      x-byte strPrivKey
      x-byte scriptPubKey
      x-byte title
      x-byte description
      32-byte hashID1
      20-byte hashID2

M2 is a coinbase OP Return output containing the following:

    1-byte - OP_RETURN (0x6a)
    4-byte - Message header (0xD6E1C5BF)
    32-byte - sha256D hash of sidechain's serialization

The new M1/M2 validation rules are:

# Any miner can propose a new sidechain at any time. This procedure resembles BIP 9 soft fork activation: the network must see a properly-formatted M1, followed by "acknowledgment" of the sidechain in 90% of the following 2016 blocks.
# It is possible to "overwrite" a sidechain. This requires more ACKs -- 50% of the following 26300 blocks must contain an M2. The possibility of overwrite, does not change the security assumptions (because we already assume that users perform extra-protocolic validation at a rate of 1 bit per 26300 blocks).


==== M3 and M4 (Withdrawing Coins) ====

Withdrawals in Bip300 (ie, "M6"), are very significant. So, we will first discuss how these are approved/rejected -- a process involving M3, M4, and D2.

===== What are Bundles? =====

All Bip300 withdrawals take the form of “Bundles” -- named because they "bundle up" many individual withdrawal-requests into one single rare layer1 transaction.

This bundle either pays all of the withdrawals out, or else it fails (and pays nothing out). Bip300 / layer 1 does not assemble Bundles (the sidechain developer does this, in a manner of their choosing).

Bundles are identified by a 32-byte hash, which aspires to be the TxID of M6. Unfortunately, the Bundle-hash and M6-TxID cannot match exactly, since the first input to M6 is a CTIP which is constantly changing. So, we must accomplish a task, which is conceptually similar to AnyPrevOut (BIP 118). We define a "blinded TxID" as a way of hashing a txn, in which some bytes are first overwritten with zeros. In our case, the precise "overwritten bytes" are: the first input and the first output.

===== M3 (Propose a Bundle) =====

M3 is a coinbase OP Return output containing the following:

    1-byte - OP_RETURN (0x6a)
    4-byte - Commitment header (0xD45AA943)
    32-byte - The Bundle hash, to populate a new D2 entry


The new validation rules pertaining to M3 are:

# If the network detects a properly-formatted M3, it must add an entry to D2 in the very next block. The starting "Blocks Remaining" value is 26,299. The starting ACKs count is 1.
# Each block can only contain one M3 per sidechain.

Once a Bundle is in D2, how can we give it enough ACKs to make it valid?

===== M4 (ACK Withdrawals) =====

M4 is a coinbase OP Return output containing the following:

    1-byte - OP_RETURN (0x6a)
    4-byte - Commitment header (0xD77D1776)
    1-byte - Version
    n-byte - The vector describing the "upvoted" bundle-choice, for each sidechain.

Version 0x01 uses one byte per sidechain, and applies in most cases. Version 0x02 uses two bytes per sidechain and applies in unusual situations where at least one sidechain has more than 256 distinct withdrawal-bundles in progress at one time. If a sidechain has no pending bundles, then it is skipped over when M4 is created and parsed.

The upvote vector will code "abstain" as 0xFF (or 0xFFFF); it will code "alarm" as 0xFE (or 0xFFFE). Otherwise it simply indicates which withdrawal-bundle in the list, is the one to be "upvoted". For example, if there are two sidechains, and we wish to upvote the 7th bundle on sidechain #1 plus the 4th bundle on sidechain #2, then the vector would be 0x0704.

The M4 message will be invalid (and invalidate the block), if it tries to upvote a Bundle that doesn't exist (for example, trying to upvote the 7th bundle on sidechain #2, when sidechain #2 has only three bundles). If there are no Bundles at all (no one is trying to withdraw from any sidechain), then *any* M4 message present in the coinbase will be invalid. If M4 is NOT present in a block, then it is treated as "abstain".

The ACKed withdrawal will gain one point for its ACK field. Therefore, the ACK-counter of any Bundle can only change by (-1,0,+1).

Within a sidechain-group, upvoting one Bundle ("+1") requires you to downvote all other Bundles in that group. However, the minimum ACK-counter is zero. While only one Bundle can be upvoted at once; the whole group can all be unchanged at once ("abstain"), and they can all be downvoted at once ("alarm").

Finally, we describe Deposits and Withdrawals.

==== M5 and M6 (User's Deposits and Withdrawals) ====

Both M5 and M6 are regular Bitcoin txns. They are identified, as Deposits/Withdrawals, when they select one of the special CTIP UTXOs as one of their inputs (see D1).

All of a sidechain’s coins, are stored in one UTXO. (Deposits/Withdrawals never cause UTXO bloat.) So, each Deposit/Withdrawal must select a CTIP, and generate a new CTIP (this is tracked in D1, above).

If the from-CTIP-to-CTIP quantity of coins goes '''up''', (ie, if the user is adding coins), then the txn is treated as a Deposit (M5). Else it is treated as a Withdrawal (M6). See [https://github.com/drivechain-project/mainchain/blob/e37b008fafe0701b8313993c8b02ba41dc0f8a29/src/validation.cpp#L667-L780 here].


===== M5 (Make a Deposit) -- a transfer of BTC from-main-to-side =====

As far as mainchain consensus is concerned, all deposits to a sidechain are always valid.

===== M6 (Execute a Withdrawal) -- a transfer of BTC from-side-to-main =====

We come, finally, to the critical matter: where users can take their money *out* of the sidechain.

In each block, a Bundle in D2 is considered "approved" if its "ACK-counter" value meets the threshold (13,150).

If a Bundle is approved, then its associated M6 can be included in a block.

An M6 must meet all these criteria, else it be invalid:

# "Be ACKed" -- The "blinded TxID" of the M6 must match an approved Bundle. In other words, an M6 can only be included in a block, after the 3+ month (13150 block) ceremony.
# "Return Change to Account" -- TxOut0 must be paid back to the sidechain's Bip300 script. In other words, since we select the UTXO with *all* of the money, we must make sure we pay all of the non-withdrawn money back into the sidechain.
# "Return *all* Change to Account" -- Sum of all inputs must equal the sum of all outputs. No traditional tx fee is possible. (The txn fee is paid via an OP TRUE output in the Bundle -- this allows the withdraw-ers to set the fee via the Bundle, and ACK it over 3 months like everything else.)


==Backward compatibility==

As a soft fork, older software will continue to operate without modification. Non-upgraded nodes will see a number of phenomena that they don't understand -- coinbase txns with non-txn data, value accumulating in anyone-can-spend UTXOs for months at a time, and then random amounts leaving the UTXO in single, infrequent bursts. However, these phenomena don't affect them, or the validity of the money that they receive.

( As a nice bonus, note that the sidechains themselves inherit a resistance to hard forks. The only way to guarantee that a sidechain's Bundles will continue to match identically, is to upgrade sidechains via soft forks of themselves. )


==Deployment==

This BIP will be deployed via UASF-style block height activation.


==Reference Implementation==

See: https://github.com/drivechain-project/mainchain

Also, for interest, see an example sidechain here: https://github.com/drivechain-project/sidechains/tree/testchain


==References==

https://github.com/drivechain-project/mainchain
https://github.com/drivechain-project/sidechains/tree/testchain
See http://www.drivechain.info/literature/index.html


==Credits==

Thanks to everyone who contributed to the discussion, especially: ZmnSCPxj, Adam Back, Peter Todd, Dan Anderson, Sergio Demian Lerner, Chris Stewart, Matt Corallo, Sjors Provoost, Tier Nolan, Erik Aronesty, Jason Dreyzehner, Joe Miyamoto, Ben Goldhaber.


==Copyright==

This BIP is licensed under the BSD 2-clause license.
